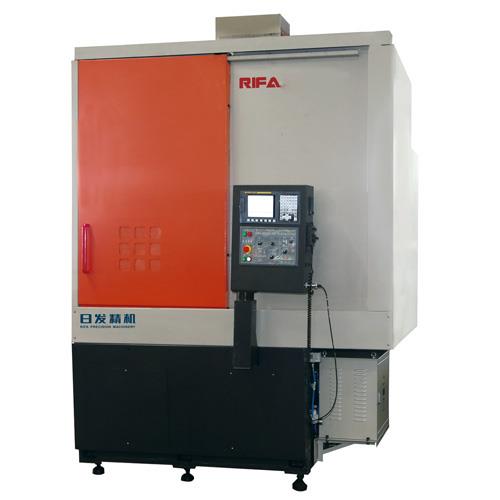

RF系列立式數控車床主要以大、中型加工件為對象，以實現強力、高精度、高生產效率加工為目的，以高剛性 、運行平穩流暢、并能持久保持高精度為基本方針而設計的產品。該款是針對汽車輪轂加工專用機型。具有以下結構特點
1、機床為整體式箱形結構結構，矩形截面立柱，具有剛性好，可耐重切削并長期保持高精度的特點。
2、回轉刀架在滑鞍上沿縱、橫向?qū)к壱苿?dòng)，導軌采用直線滾柱導軌，移動輕便，沒有爬行，動作靈活，定位準確， 可長期保持精度?？v向運動配有有自重平衡裝置，其動作靈活、迅速且準確。
3、主軸直徑粗，軸承結構剛性好，可進行高精度強力切削。
4、各種手動、數控、強電按鈕和CRT裝置全部集中在擺臂式面板上，提高了操作性。
5、采用具全封閉式護罩；排屑器為后排型。
RF series vertical CNC lathes are mainly designed for large and medium-sized machined parts, aiming to achieve powerful, high-precision and high-efficiency machining, and taking high rigidity, smooth operation and long-lasting high-precision as the basic policy. This model is a special model for automobile hub processing. It has the following structural features
1. The machine tool is an integral box structure with rectangular section columns. It has the characteristics of good rigidity, heavy cutting resistance and long-term high precision.
2. The rotary tool rest moves along the longitudinal and transverse guide rails on the sliding saddle. The guide rail adopts a linear roller guide rail, which is portable, free of crawling, flexible, accurate positioning and can maintain the accuracy for a long time. Longitudinal movement is equipped with self weight balance device, which is flexible, rapid and accurate.
3. The diameter of the main shaft is large, and the bearing structure is rigid, which can be used for high-precision and powerful cutting.
4. Various manual, numerical control, strong current buttons and CRT devices are all concentrated on the swing arm panel, which improves the operability.
5. Adopt totally enclosed shield; The chip conveyor is a rear row type.
