通用工具機械系列

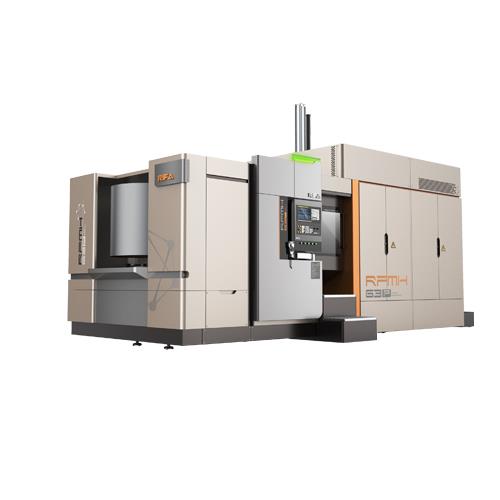

RFMH100P臥式加工中心 Horizontal machining center

臥式加工中心系列

RFMH100P臥式加工中心 Horizontal machining center

產品簡介

RFMHP系列臥式加工中心源自國外的設計、制造工藝。設備具備高精度、高剛性、高效率及高可靠性等特點。適合對箱體類、支架類、殼體類等零件進行孔及孔系、輪廓復雜的形、面和各類平面的鏜削、銑削、鉆削等工序加工。
RFMHP series horizontal machining centers are designed and manufactured in foreign companies. The equipment has the characteristics of high precision, high rigidity, high efficiency and high reliability.It is suitable for boring, milling and drilling of holes, hole systems, complex shapes, surfaces and various planes of box, bracket, shell and other parts.
Translation:

結構特點

規格參數

●機床采用熱對稱結構設計
●加工區域加裝隔熱機構
●主軸箱重心驅動
●絲杠預拉伸結構，配油氣潤滑機構
●采用滾柱導軌，使設備具備高精度、高剛性與高可靠性的特點
●The machine tool adopts thermal symmetrical structure design
●Install heat insulation mechanism in processing area
●Spindle box center of gravity drive
●Lead screw pre stretching structure, oil and gas lubrication mechanism
●Adopt roller guide rail to make the equipment have the characteristics of high precision, high rigidity and high reliability

規格	RFMH100P
X 軸行程（左右）X axis	mm	1600
Y 軸行程（上下）Y axis	mm	1400
Z 軸行程（前后）Z axis	mm	1800
主軸中心線至工作臺面尺寸 The distance from spindle center line to table	mm	100-1500
主軸端面至工作臺中心尺寸 Distance from spindle end to table spindle end face to workben	mm	180-1980
工作臺尺寸（長 X 寬）Table size（LXW）	mm	1000×1000
工作臺分度 Table indexing	°	0.001
工作臺最大承重 Max loading capacity	Kg	2000
工作臺數量 Number of work piece	no.	2
最大工件直徑 Maximum work piece diameter	mm	Φ1600
最大工件高度 Maximum work piece height	mm	1600
工作臺回轉速度 Table rotation speed	rpm	15
工作臺交換時間 Worktable exchange time	s	20
主軸轉速 Spindle speed	rpm	20-6000
主軸錐孔 Spindle taper		BT50
主軸功率 Spindle power	kw	47/55
主軸扭矩 Spindle torque	Nm	669
切削速度 Cutting speed	mm/min	1-45000
快移速度（X/Y/Z）Fast moving speed (X / Y / Z)	m/min	45/45/45
定位精度（X/Y/Z/B） Positioning accuracy (X / Y / Z / B)		X/Y/Z ：0.012mm B：6″
重復定位精度 Repeated positioning accuracy		X/Y/Z ：0.006mm B：4″
刀具容量 Tool capacity	No.	矩陣式刀庫 Rack type magazine97-999
錐孔 Taper	Type	BT50
最大刀具長度 Max. tool length	mm	500
最大刀具直徑相鄰刀位有刀 Max. tool diameter with adjacent slots occupied	mm	Φ100
最大刀具直徑相鄰刀位無刀 Max. tool diameter with adjacent slots free	mm	Φ250
最大刀具重量 Max. tool mass	kg	25
冷卻系統 Cooling system		主軸前端噴嘴 Front nozzle of spindle
強力沖屑 Powerful punching		工作腔沖屑 chip rush in working area
排屑系統 Chip removal system		自動排屑器 Automatic chip conveyor
防護罩 Protection cover		全封罩 Full cover
氣源壓力 Gas pressure	Mpa	0.5-0.8Mpa
潤滑系統 Lubrication system		定時定量潤滑 Automatic lubrication
液壓壓力 Hydraulic pressure	Mpa	10-16Mpa(5.5-6Mpa)
機床重量 Machine tool weight	Kg	30000
數控系統 Numerical control system		標準配置 SIEMENS 828D，根據用戶需要，可配置 FANUC oi MF 等系統 Standard:Siemens 828D,Optional:Fanuc oi MF
